Next generation solar panels!

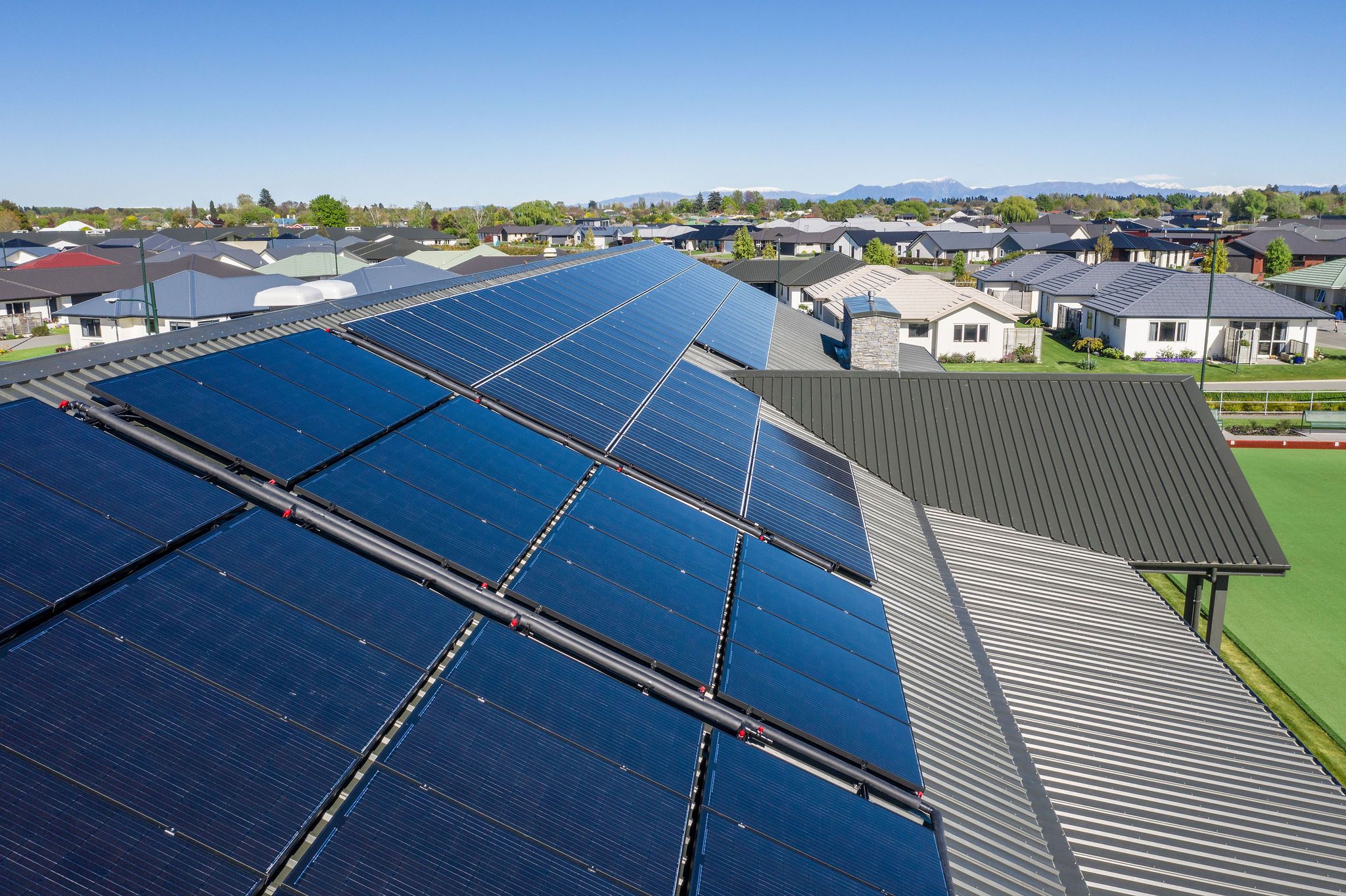

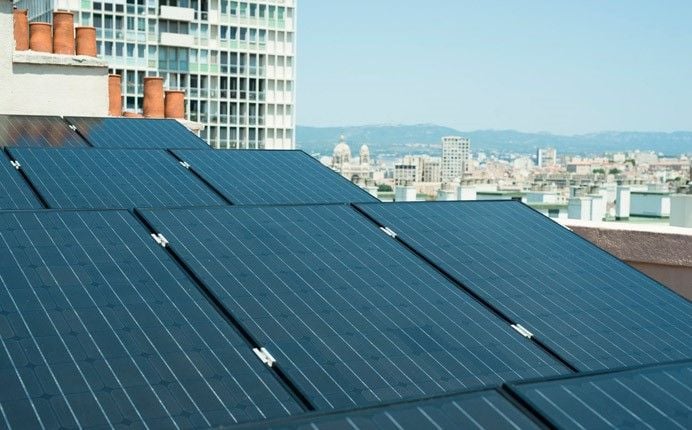

The DualSun technology thus allows a double production of energy, electricity and hot water, with one unique solar panel, without changing the size or design of a standard photovoltaic panel.DualSun is a major technological innovation that responds to the ensemble of our buildings energy needs all while minimizing rooftop surface.
- Produce your own energy & heat your water at the same time!
- Gold award winning design
- Manufactured in France
- Full product warranty
PHONE 0800 252 002
EMAIL info@pbinz.com
Video can’t be displayed
This video is not available.
First in the world!
The DualSun panel was the first hybrid panel in the world to obtain the new “hybrid solar” Solar Keymark certification in late 2013. All DualSun panels are Solar Keymark and IEC certified, and thus have passed a number of rigorous tests, most notably :
- HAIL RESISTANCE : the panel passed the Swiss RG4 test standard and thus can resist the projection of hailstones up to 7.5cm in diameter, weighing 203g with a speed of 143 km/h.
- WIND RESISTANCE : a low-pressure of 2400 Pa, the equivalent of a 130 km/h wind applied to the panel for one hour.
- SNOW RESISTANCE : a pressure of 5400 Pa, the equivalent of 6 meters of snow applied to the panel for one hour.
- THERMAL CYCLING : the module is exposed to 200 temperature cycles, with each cycle going from -40°C to 85°C over a 6-hour period.
- DAMP HEAT : the module is exposed to extreme conditions (85°C and 85% relative humidity) for 1000 hours.
Dual Heat
The backside of the DualSun Spring panel is composed of a polypropylene heat exchanger protected by 3 international patents. The water that circulates through the exchanger is warmed by the heat dissipated from the photovoltaic cells and can reach temperatures up to 70°C.
The heated water can then be used for different heating needs of the building : domestic hot water, pool heating, and even space heating with a combined system.
